Aluminum Coil Cleaning Line
Why pre-clean metal?
Aluminum coil or galvanized steel strip is cleaned with hot water and treated with chemicals in order to form an ideal surface for coating with PE or PVDF. Another purpose for pre-cleaning metal is to enhance the anti-corrosion features of metal as well as strengthen the bonding between metal sheet and coating layer.
Benefits
- Especially for metal surface degreasing.
- Easy to use on surface pretreatment.
- Suitable for chromate process.
Specification
| Item & Type | AL-25 | AL-40 |
| Line Speed | 25M/min | 40M/min |
| Strip Width | 1,000～1,600 mm/1,000～2,000 mm | 1,000～1,600 mm/1,000～2,000 mm |
| Strip Thickness | 0.12 ～ 0.7 mm | 0.15 ～ 0.8 mm |
| Coil O/D | 1,200 mm /1,300 mm | 1,200 mm /1,300 mm |
| Coil I/D | Ø405 mm，Ø508 mm | Ø405 mm，Ø508 mm |
| Coil Weight | 3,000 kgs /5,000 kgs | 3,000 kgs /5,000 kgs |
| Line Space Dimension | 42,000L x 8,000W x 4,000H mm | 42,000L x 8,000W x 4,000H mm |
| Line Weight | 40,000kgs (approx.) | 36,000kgs (approx.) |
| Line Power | 86HP/120KW | 113HP/180KW |
| Soft Water Quantity | 1,800 ~ 2,500L/hr | 2,500 ~ 3,500L/hr |
| D.I Water Quantity | 1,000 ~ 1,500L/hr | 1,000 ~ 1,500L/hr |
| Compressed Air Consumption | 0.8 ~ 1.5 M³/hr | 0.8 ~ 1.5 M³/hr |

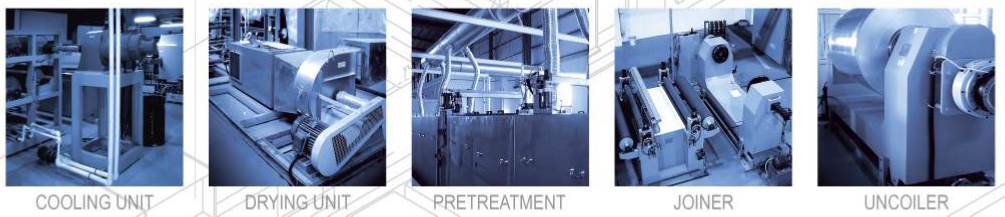

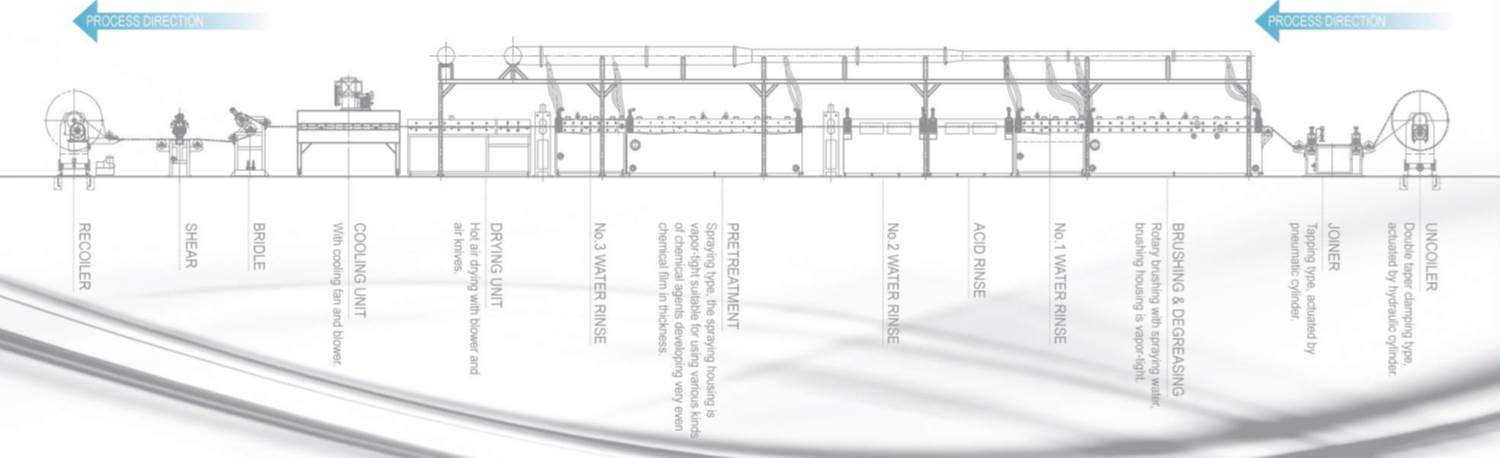

Process Flow in Production Line
